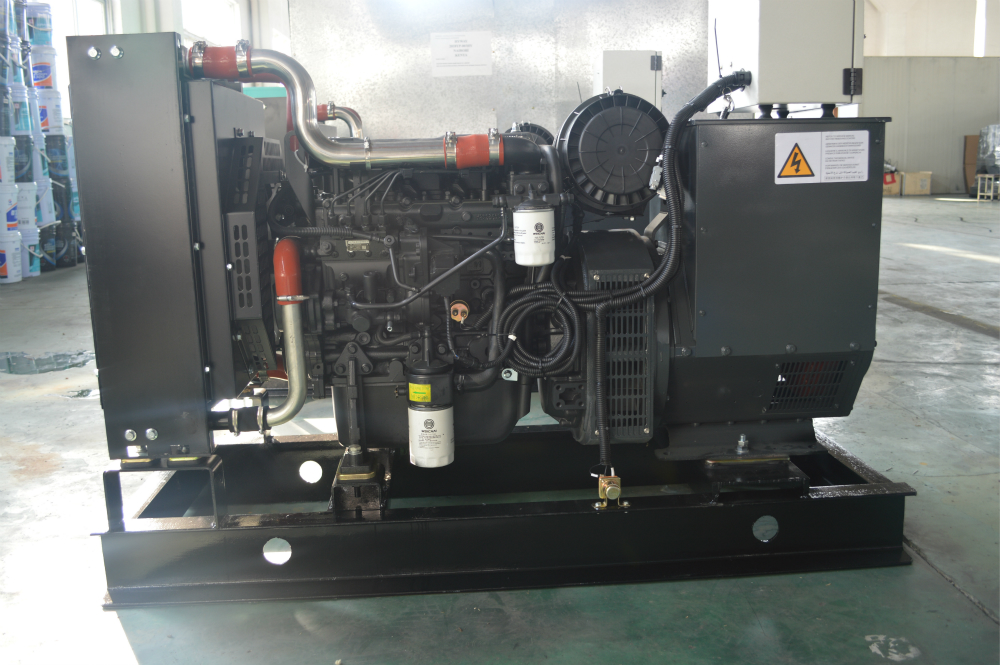

30KW Weichai Power Diesel Generator Set, 18168300588 WeChat Same Number
Parameters of Zhongjie Weichai Power 30 kW Diesel Generator Set WP4.3D38E2
Unit Model GF-30 Unit Weight 900KG
Main/backup power 30KW/33KW
Unit size 1600 * 700 * 1300mm
Power factor COS Φ=0.8 (lag)
Voltage 400/230, maximum output current 54.3A
Frequency 50Hz
Zhongjie Weichai Power 30 kW Diesel Generator Set - [Diesel Engine] Parameters
Engine manufacturer Weichai Power engine model WP4.3D38E2
Exhaust volume 4.3L, speed 1500RPM
The coolant capacity is 15.58L, the power is 38/40KW, and the number of cylinders is 4 in a row,
Four stroke, naturally aspirated fuel consumption ≤ 230g/kw. h engine cooling method: closed cycle water cooling
Lubricating oil capacity 12.7L Speed control system Mechanical speed control cylinder diameter × stroke 105 * 125mm
Starting method 24V DC power starting compression ratio 17.5:1
Engine filtration system includes dry air filters, fuel filters, and oil filters
Zhongjie Weichai Power 30 kW Diesel Generator Set - [Generator] Parameter Manufacturer Jiangsu Zhongjie (brand optional)
The steady-state frequency change rate of model ZJ-30 is better than 5% under voltage control mode AVR (automatic voltage stabilization)
The adjustment range of no-load voltage is ≥ 95% -105%, and the voltage adjustment rate is ± 1%
Insulation level/protection level H/IP22 rated voltage/frequency/
Power factor 400V/230V, 50Hz, 0.8 lag, three-phase four wire excitation mode brushless excitation
