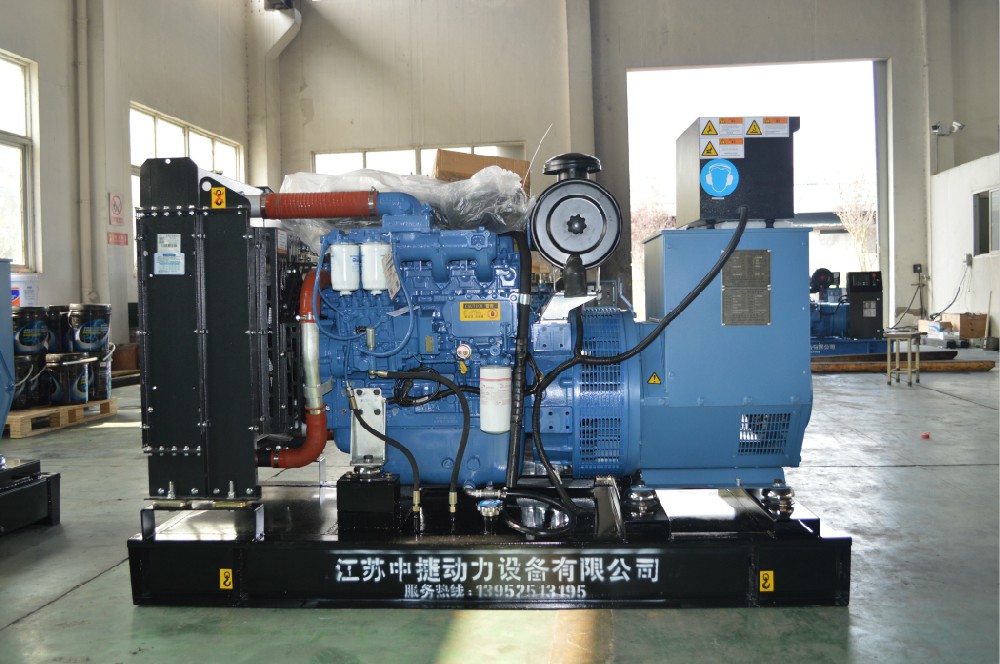

80KW Yuchai diesel generator set，18168300588微信同号(Actual photo taken before shipment of the unit)
Parameters of 80KW Yuchai diesel generator set
Unit model GF-80
Manufacturer Jiangsu Zhongjie Power Equipment Co., Ltd
Output power (KW) 80 Backup power (KW) 88
Power factor COS&Pi= 0.8 (lag) output voltage 400/230V
Rated output current (A) 144
Unit dimensions (length * width * height) 2250 * 780 * 1380
Unit weight (KG) 1500
Diesel engine: Yuchai YC6B135Z-D20
Starting method DC24V electric starting cylinder arrangement method inline cylinder number arrangement 6
Cooling method: Closed water circulation cooling cylinder diameter/path (mm) 108 * 125 mm
Air intake method: naturally aspirated fuel model: domestic 0
Fuel supply method: Direct injection fuel consumption rate (g/kw * h)≤ two hundred and ten
Compression ratio 17.5:1 speed regulation method: mechanical speed regulation or electronic speed regulation
Intermediate cooling method oil capacity (L) 14-17
Oil model CD15W/40
Generator: Zhongjie GF-50
Material: Pure copper, frequency 50Hz
Insulation level H Voltage control mode AVR
Protection level IP23 phase number/wiring three-phase four wire/Y-shaped winding
Frequency fluctuation rate (%)&le& plusmn; zero point five
Voltage fluctuation rate (%)&le& plusmn; zero point five
Voltage regulation rate (%)&le& plusmn; zero point five
(Steady state)+20~-15 (Transient)
Frequency adjustment rate (%)&le& plusmn; zero point five
(Steady state)+10~-7 (Transient)
