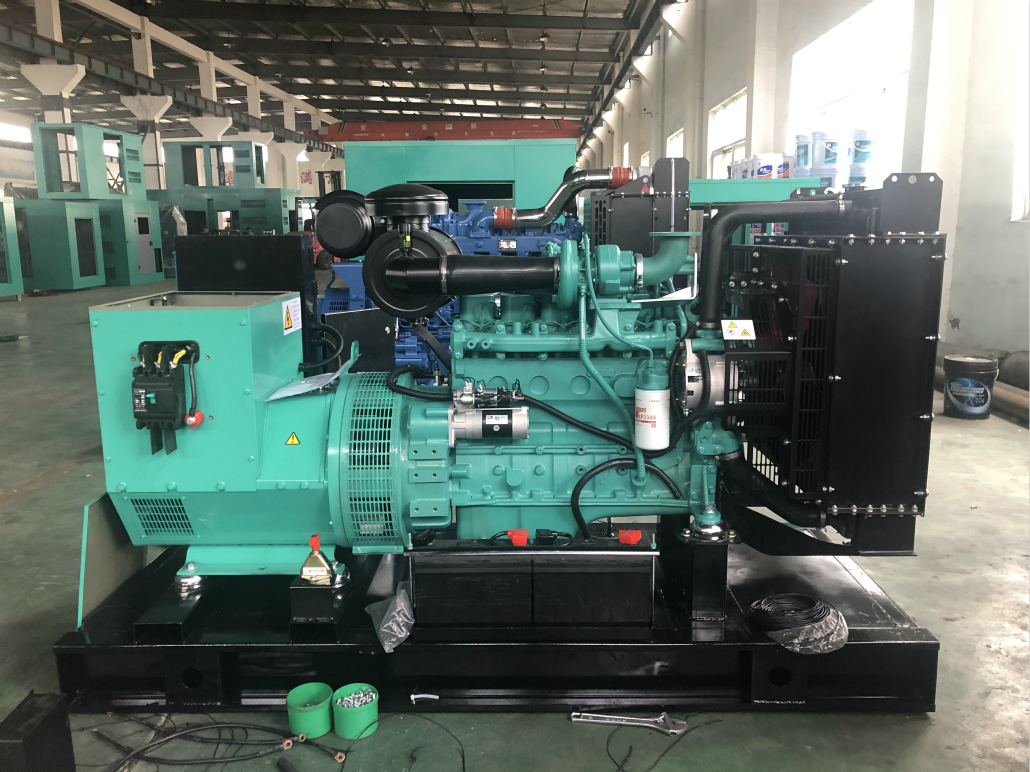

100KW Dongfeng Cummins diesel generator set, diesel engine model: 6BTA5.9-G2，18168300588 Phone and WeChat Same Number
The technical parameters are as follows:
Unit model: GF-100
Backup power (KW): 100 Common power (KW): 90
Unit size (mm): 2300× 800× 1300 LP1m noise (dB): 102
Unit weight (kg): 1500 Speed (r/min): 1500
Fuel consumption (g/kw. h): 211 Frequency (HZ): 50
Control system: LCD Chinese LCD numerical control (supporting ATS conversion function)
Transient voltage regulation rate:- 15%/+20% steady-state voltage regulation rate:& plusmn; 1%
Voltage stabilization time:≤ 3-sec voltage fluctuation rate:; 0.5%
Voltage waveform distortion:; 8% steady-state frequency adjustment rate:; 5%
Transient frequency adjustment rate:- 10%/+12% frequency stabilization time: 3 seconds
Frequency fluctuation rate:≤ 1.5%
Diesel engine (driven by land generator set) parameters Engine Parameters
Diesel engine brand: Cummins Manufacturer: DCEC Dongfeng Cummins Diesel Engine (Land Generator Drive Type) Co., Ltd
Diesel engine model: 6BTA5.9-G2 Maximum power (KW): 116
Number of cylinders/arrangement: 6 cylinders/inline compression ratio: 17.5:1
Cylinder diameter * stroke (mm): 102 * 120 Displacement (L): 5.9
Oil pressure (kPa): 345 Oil temperature (℃):; one hundred and twenty-one
Oil capacity (L): 16.4 Coolant capacity (L): 10 (diesel engine only (land generator driven type))
Fuel system: PB inline pump cooling method: closed water-cooled cycle
Speed regulation method: electronic speed regulation Start method: DC24V electric start
Air intake method: turbocharging, water-cooled type: four stroke
Constant load steady-state fluctuation rate:± 0.25% power deviation: ≤± 5%
Generator Parameters
Generator brand: Zoje (brand optional) Generator efficiency:≥ 90%
Voltage: 400V/230V Type: Brushless self-excited (AVR automatic voltage regulation)
Phase number: Three phase four wire connection: Y-shaped connection method
Insulation level: H-level Power factor: COS&Phi= 0.8 lag
Telephone influence coefficient: TIF:<50 Telephone harmonic coefficient: THF:<2%
Protection level: IP22/IP23
Standard Configuration
Diesel engine (driven by land generator set) section: diesel engine (driven by land generator set), diesel compartment, air compartment, oil compartment, charger, starter motor.
Generator section: Generator, air switch.
Control system: LCD digital display controller, electronic speed controller.
Other parts: radiator, steel base, vibration damping pad.
Attachment section: Muffler, battery, battery cable, engine oil, shock pad.
Meets the standard standards
International standard ISO 8528:2005 Military standard GJB 5785-2006
National standard GB/T 2820-2002 Communication standard YD/T 502-2007
Industry Standard JB/T 10303-2001 Enterprise Standard Q/TOTO 1-2009
Third party certification
Health and Safety Certification GB/T28001-2001 Global Market Certification GMC
Environmental Management Certification ISO14001:2004 Environmental Qualification Certification Noise and Vibration Class A/Waste Gas Class A
Quality Management Certification ISO9001:2008 Product Certification Tyre YD/T502-2007*
Warranty Period
The warranty period in China is one year or 1000 hours of operation (whichever comes first). If the warranty period is exceeded, lifetime paid services can be provided (vulnerable parts, commonly used consumables, human damage, neglect of maintenance, incorrect operation, etc. are not covered by the warranty).
Optional Matching Items (additional cost)
Electrical/oil system:
∝ City/Power Conversion Cabinet (ATS) ∝ Parallel Cabinet
∝ Low voltage distribution cabinet ∝ Capacitor compensation cabinet
∝ Remote Monitoring System ∝ Cable (3× 70+1× 35mm²)
∝ Oil water separator ∝ Diesel fuel gauge
Related supporting projects:
∝ Environmental noise reduction project ∝ Exhaust gas purification project
▽ Computer Room Ventilation Engineering ▽ Computer Room Civil Engineering
∝ Silent speaker ∝ Rain proof box
∝ Trailer type mobile power station ∝ Split type daily fuel tank
⊙ Integrated base fuel tank
Performance Characteristics: Performance Pharmacology
Advanced design and sophisticated manufacturing adapt to harsh working conditions, with strong capabilities for high-intensity and heavy-duty operations.
The Holset exhaust bypass valve has better power performance.
Integrated design of cylinder blocks, cylinder heads, and other components; A multifunctional item;, Reduced the number of connecting components, with 40% fewer parts compared to other similar diesel engines (driven by land-based generator sets), greatly reducing the failure rate.
Excellent reliability is achieved through the use of forged steel camshafts and crankshafts, as well as a high-strength cylinder body design. Many parts are cast onto the cylinder body, resulting in high stiffness, strong high-pressure resistance, and longer service life.
The cylinder liner with platform mesh honing design effectively prevents oil leakage with perfect geometric structure.
The rotor high-pressure fuel pump has lower fuel consumption and effectively reduces noise.
Environmental Requirements
Altitude (m): ≤ 1000 Fuel standard: 0 # light diesel oil
Atmospheric pressure (kPa): ≥ 89.9 Oil standard: CF grade/15W-40
Inlet temperature (℃): ≤ 40 Water quality pH value: 6.5-8
Relative humidity:; 60% surface mold growth grade:; GB/T2423.16/Level 2
Seismic strength: horizontal acceleration 0.2g, vertical acceleration 0.1g
