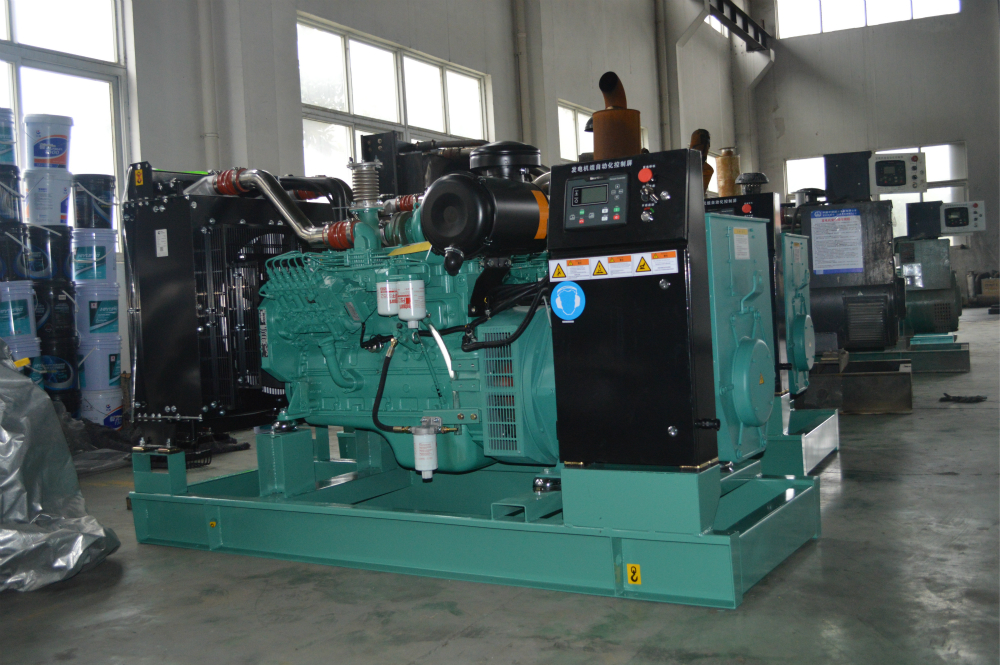

150KW Cummins diesel generator set
18168300588 WeChat Same Account
Jiangsu Zhongjie Power Equipment Co., Ltd. TEL: 18260055264
WeChat: 18260055264
Zhongjie Dongkang 150kW diesel generator set parameters 6CTA8.3-G1/G2
Unit Model GF-150 Unit Weight 1740KG
Main/backup power 150KW/160KW
Unit size 2450 * 1100 * 1650mm
Power factor COS Φ=0.8 (lag) Voltage 400/230
Maximum output current 271.5A, frequency 50Hz
Zhongjie Dongkang 150kW Diesel Generator Set - [Diesel Engine] Parameters
Engine manufacturer Dongfeng Cummins
Engine model 6CTA8.3-G1/G2 Dongfeng Cummins displacement 8.3L
Speed 1500RPM, coolant capacity 27.6L
Maximum power 163/180KW
6-cylinder inline, four stroke, water-cooled air
Fuel consumption ≤ 205g/kw. h
Engine cooling method: Closed loop water cooling
Lubricating oil capacity 12.3L speed control system electronic speed control
Cylinder diameter × stroke 114 * 135 mm, starting mode 24V DC electric start
Compression ratio 17.3:1 engine filtration system
Dry air filter, fuel filter
Filter, oil filter
Zhongjie Dongkang 150kW diesel generator set - [Generator] parameters
Manufacturer Zhongjie Power (brand optional)
The steady-state frequency change rate of model ZJ-150 is better than 5%
Voltage control mode AVR (Automatic Voltage Stabilization)
The adjustment range of no-load voltage is ≥ 95% -105%
Voltage regulation rate ± 1%
Insulation level/protection level H/IP22
Rated voltage/frequency/power factor 400V/230V,
50Hz, 0.8 hysteresis, three-phase four wire
Excitation method: brushless excitation
