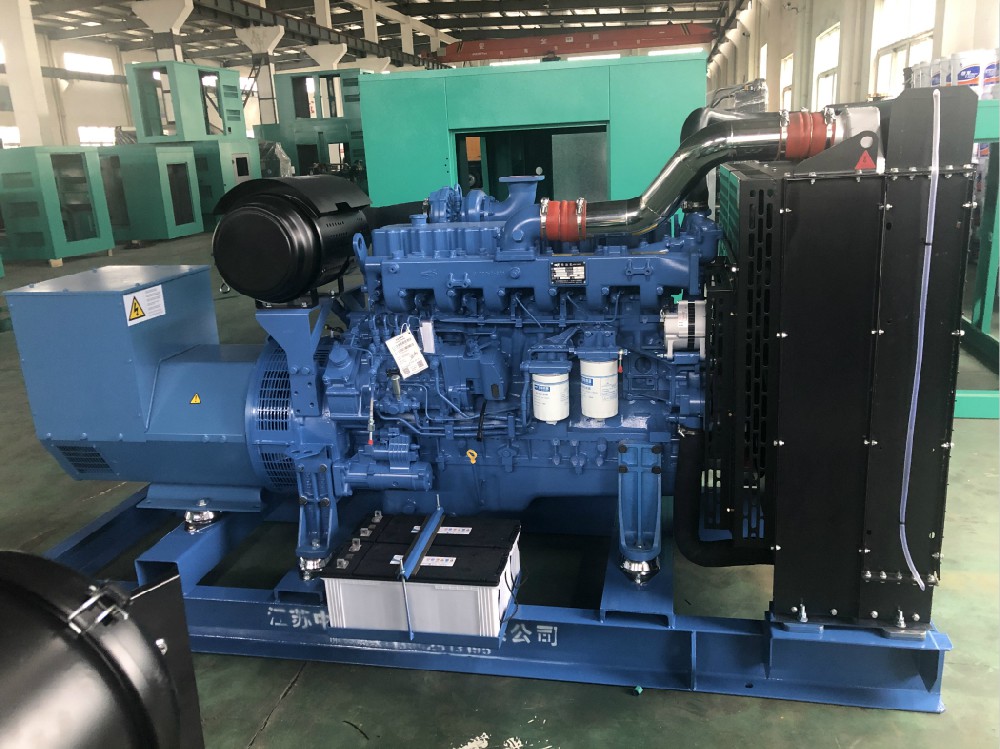

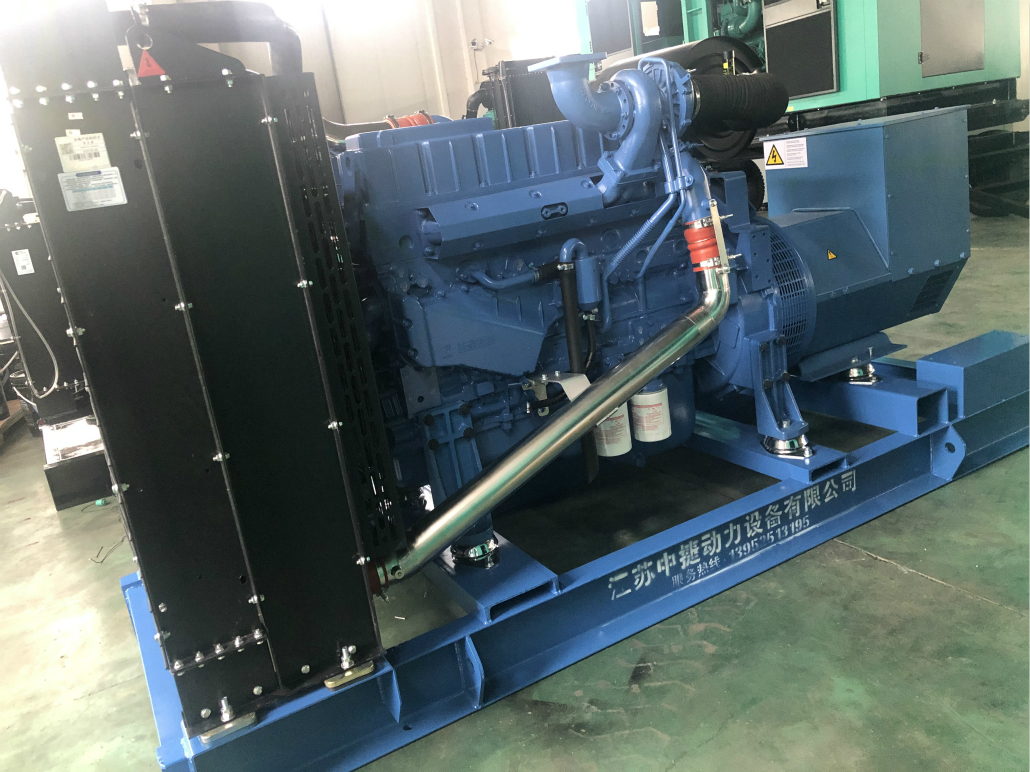

200KW Yuchai diesel generator set, Yuchai: YC6MK350L-D2018168300588 phone and WeChat numbers are the same, waiting for the installation of the control cabinet. Our standard configuration is self starting with four protections
The technical parameters are as follows:
Unit model: GF-200
2. Unit power: 200KW
3. Generator model: ZJ-200
4. Frequency: 50Hz
5. Output voltage: 400/230V
6. Speed: 1500rpm
7. Power factor: COS Φ=0.8 (lagging)
8. Fuel consumption of the unit (g/Kw * h): ≤ 195
9. Maximum output current (A): 360
10. Number of phases/lines: Three phase four wire
11. Noise LP7m: ≤ 94db
12. Dimensions (mm): 3000 * 1100 * 1700
13. Weight: 2250Kg

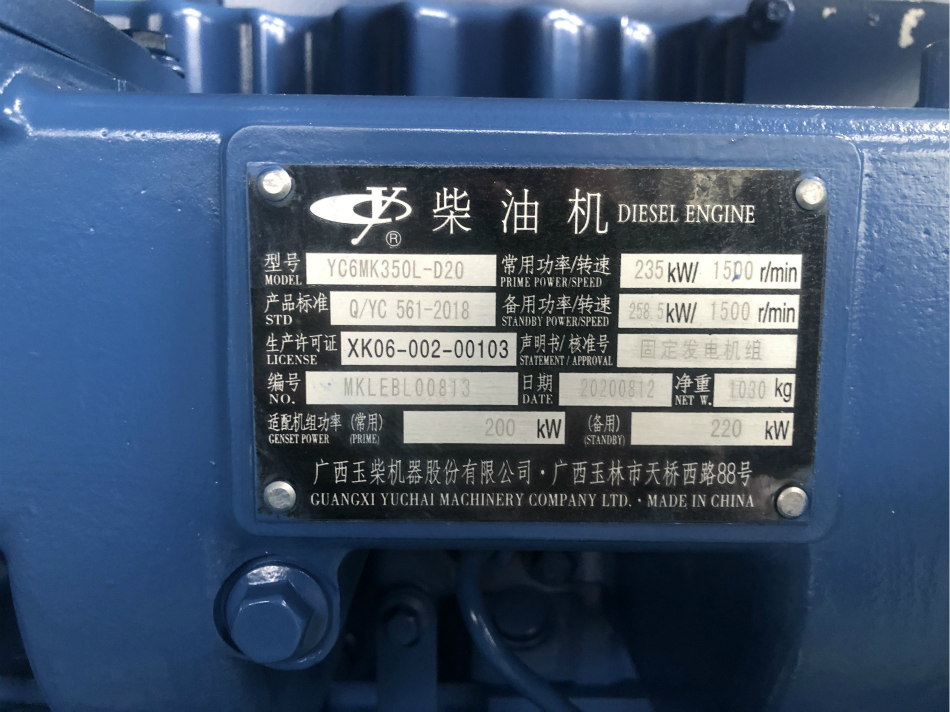

2、 Yuchai YC6MK350L-D20
1. Model: YC6MK350L-D20
2. Backup power: 258.5KW
3. Manufacturer: Yuchai Machinery Co., Ltd
4. Cooling start: Closed water cooling
5. Startup method: 24V DC power startup
6. Air intake method: turbocharged and intercooled
7. Number of cylinders: 6
8. Cylinder diameter/stroke: 123/145mm
9. Total cylinder displacement L: 10.34
10. Oil capacity L: 28
11. Cooling water capacity L: 47
12. Oil consumption rate (g/Kw * h): ≤ 0.15
13. Compression ratio: 16.8:1
14. Fuel supply method: direct injection
15. Cylinder arrangement: upright
16. Intermediate cooling method: water cooling
17. Fuel model: Domestic 0 # light diesel
18. Speed regulation method: mechanical speed regulation
19. Engine oil model: WD/40
20. Dimensions (mm): 1820 * 900 * 1370
21. Weight: 1030Kg
3、 Parameters of Zhongjie 200KW generator
1. Brand: Zhongjie (brand optional)
2. Manufacturer: Jiangsu Zhongjie Power Equipment Co., Ltd
3. Origin: Yangzhou
4. Model: ZJ-200
5. Material: Pure copper
6. Insulation level: H
7. Voltage control mode: AVR
8. Voltage: ≤ 4%
9. Rated voltage (V): 400/230
10. Protection level: IP23
11. Frequency: 50Hz
12. Phase number/wiring: three-phase four wire/Y-shaped winding
13. Frequency adjustment rate (%): ≤± 0.5 (steady-state)+10~-7 (transient)
14. Voltage regulation rate (%): ≤± 0.5 (steady-state)+20~-15 (transient)
15. Frequency fluctuation rate (%): ≤± 0.5
16. Voltage fluctuation rate (%): ≤± 0.5
