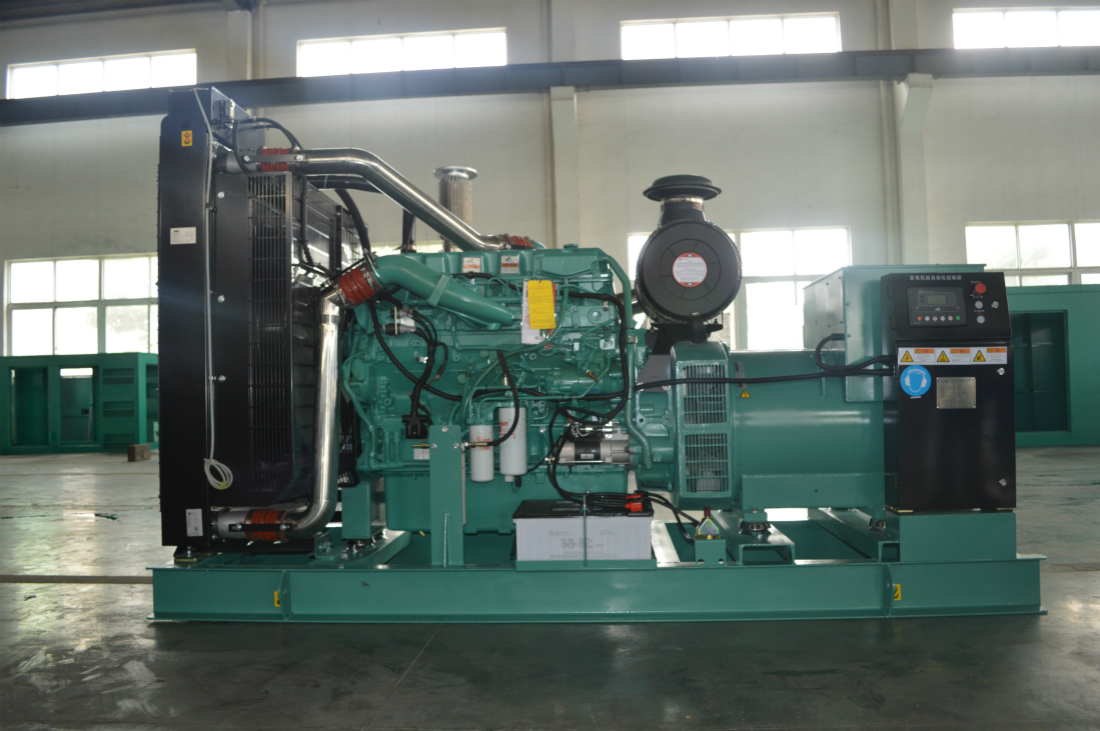

330KW Dongfeng Cummins diesel generator set, including ATS switching cabinet (self starting and self stopping device), 18168300588 telephone and WeChat same number
Zhongjie Dongkang 330kW diesel generator set parameters 6ZTAA13-G2
Unit Model GF-330 Unit Weight 2800KG
Main/backup power 330KW/360KW unit size 2900 * 1300 * 1900mm
Power factor COS Φ=0.8 (lag) Voltage 400/230
Maximum output current 595A, frequency 50Hz
Zhongjie Dongkang 330kW diesel generator set - [diesel engine] parameters
Engine manufacturer Dongfeng Cummins
Engine model 6ZTAA13-G2 Dongfeng Cummins displacement 13L
Speed 1500RPM, coolant capacity 45.42L
Maximum power 390/415KW
Number of cylinders: 6-cylinder inline, 4-stroke, water-cooled
Fuel consumption ≤ 204g/kw. h engine cooling method: closed cycle water cooling
Lubricating oil capacity 23.1L speed control system electronic speed control
Cylinder diameter × stroke 130 * 163 mm, starting mode 24V DC electric start
Compression ratio 17:1 engine filtration system
Dry air filter, fuel filter
Filter, oil filter
Zhongjie Dongkang 330kW diesel generator set - [Generator] parameters
Manufacturer Zhongjie Power (brand optional)
The steady-state frequency change rate of model ZJ-330 is better than 5%
Voltage control mode AVR (Automatic Voltage Stabilization)
The adjustment range of no-load voltage is ≥ 95% -105%
Voltage regulation rate ± 1%
Insulation level/protection, etc
level
H-grade/IP22
Rated voltage/frequency/power
Rate factor
400V/230V, 50Hz, 0.8 hysteresis,
Three phase four wire
Excitation method: brushless excitation
