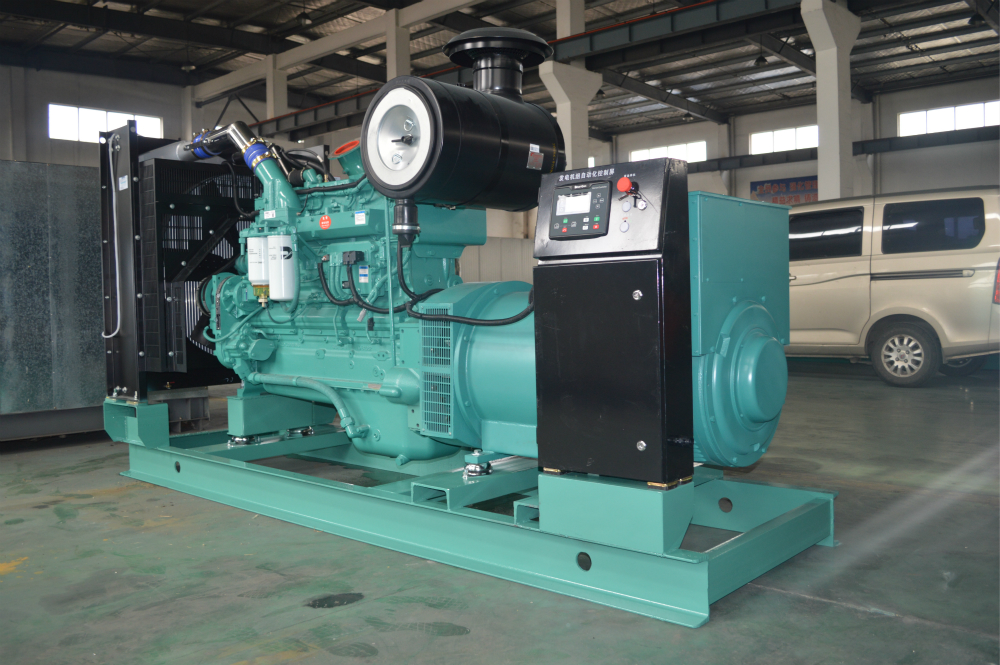

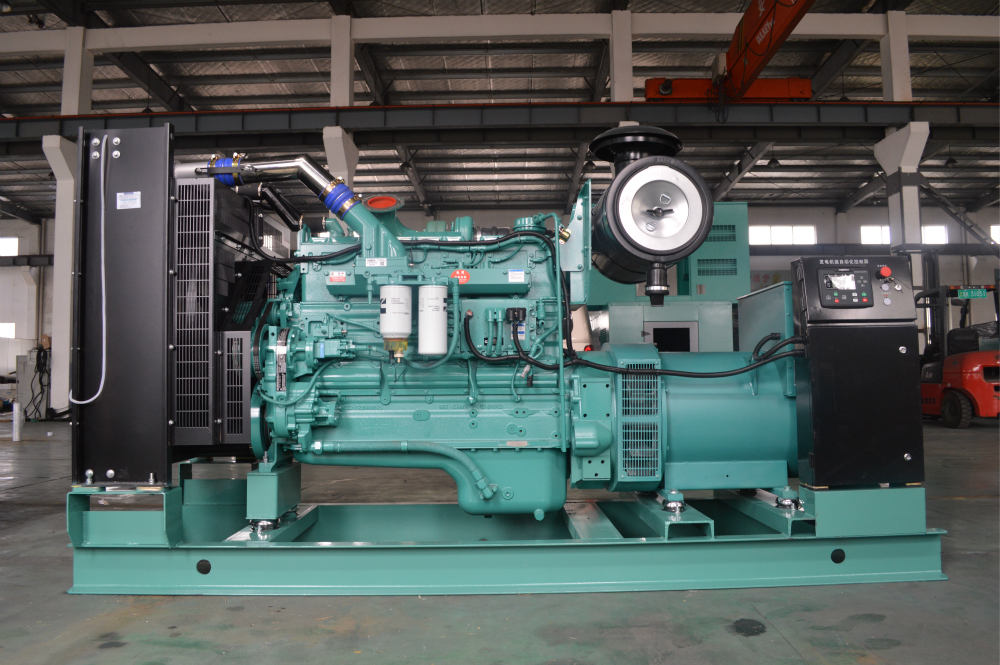

300KW Chongqing Cummins Diesel Generator Set, 18168300588 WeChat Same Account
| Model of diesel generator set | GF-300 | ||
| Unit power (kw) | 300 | Output current（A） | 541 |
| Frequency (Hz) | 50 | Rotational speed (rpm) | 1500 |
| Output voltage (V) | 400/230 | Unit fuel consumption (g/Kw * h) | 206 |
| Number of phases/lines | Three-phase four-wire | Power factor | COSφ=0.8(Lag) |
| Dimensions (mm) | 3400*1050*2050 | Weight (kg) | 2935 |
| Technical parameters of 350kw Cummins diesel generator set diesel engine | |||
| Diesel engine model | NTAA855-G7 | ||
| Diesel engine brand | Chongqing Cummins | Diesel engine power (kw) | 377 |
| Cooling method | Closed water cooling | Start mode | 24V DC power start |
| No. of cylinders | 6 | Cylinder diameter stroke (mm) | 140*152 |
| Cylinder arrangement method | Inline | Oil supply method | Direct injection |
| Technical parameters of 350kw Cummins diesel generator set generator | |||
| Generator model | ZJ-3050 | ||
| Generator material | All copper brushless | Insulation level | H |
| Voltage control mode | AVR | Voltage | ≤4% |
| Protection grade | IP23 | Pressure regulation method | Automatic Voltage Regulation |
