450KW Shangchai Diesel Generator Set, 18168300588 WeChat Same Account

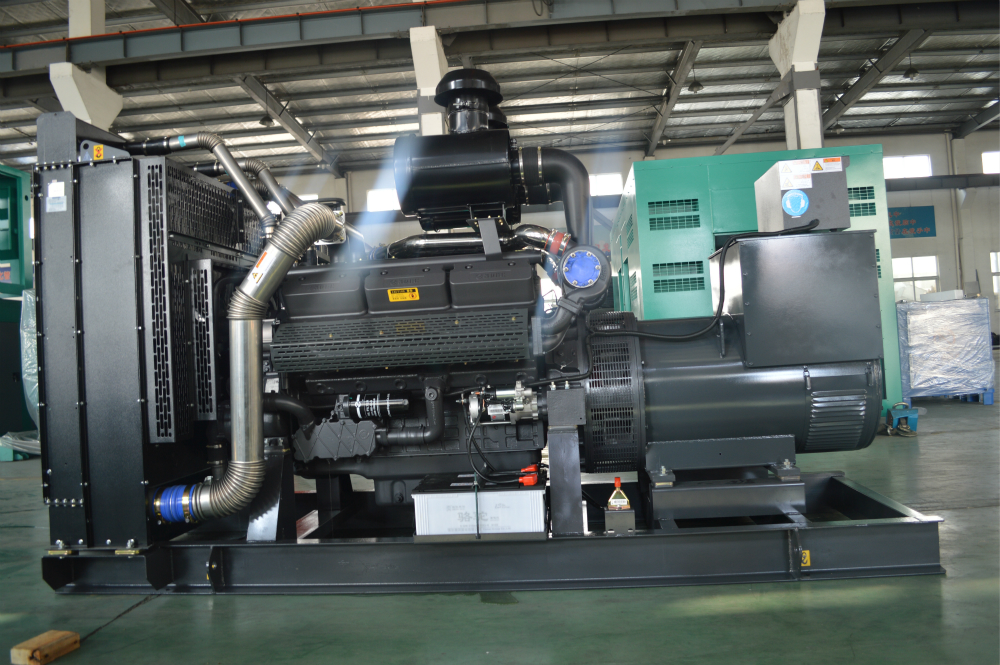

450 kW diesel generator set model GF-450
Primary and backup
Unit power (KW) 450500
Engine model SC27G755D2
Engine manufacturer Shangchai Co., Ltd
Engine structure V-shaped arrangement of 12 cylinders, four stroke, exhaust gas turbocharging, water-cooled air
Engine cooling method: Closed loop water cooling
Mechanical speed regulation of speed control system
Starting method: 24V DC power starting
Engine filtration system includes dry air filters, fuel filters, and oil filters
AD type fuel pump for fuel system
Compression ratio 17.5:1
Cylinder diameter × stroke (mm) 108 × 135
100% load fuel consumption (g/kw. h) 206
Exhaust air volume (m3/min) 148
Gas volume (m3/min) 5.9
Smoke exhaust rate (m3/min) 15.5
Oil capacity (L) 16.4
Coolant capacity (L) 24.5
Generator manufacturer Jiangsu Zhongjie (brand optional)
Rated voltage/frequency/power factor 400V/230V, 50Hz, 0.8 hysteresis, three-phase four wire
Steady state frequency change rate is better than 5%
The adjustment range of no-load voltage is ≥ 95% -105%
Insulation level/protection level H/IP23
Telephone influence coefficient/harmonic coefficient TIF ＜ 50/THF ＜ 2%
Unit size (mm) 3650 × 1700 × 2200
Unit weight (kg) 4200
