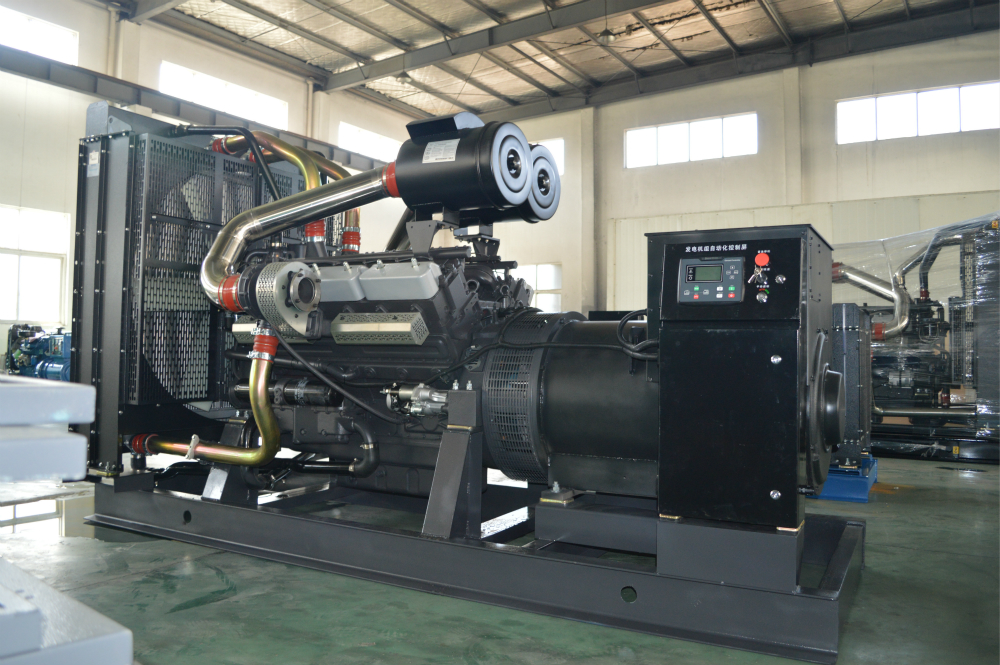

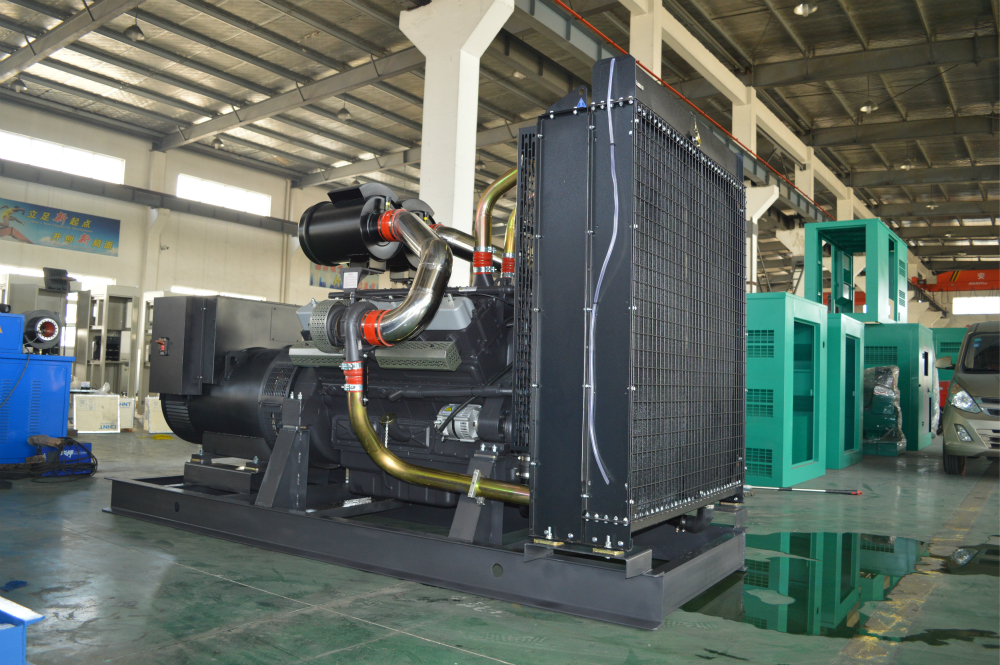

500KW Shanghai Kaipu Diesel Generator Set, 18168300588 WeChat Same Account
500KW Shanghai Kepu Diesel Generator Set, 18168300588 WeChat Same Number 500KW Kepu Diesel Generator Set Parameters
1、 Technical Specification (1) Diesel Generator Set Model: GF-500
Common power of diesel generator set (KW): 500 Backup power of diesel generator set (KW): 550
Diesel generator set frequency: 50Hz
Diesel generator set output voltage: 400/230V
Diesel generator set speed: 1500rpm
Power factor of diesel generator set: COS Φ=0.8 (lagging)
Diesel generator fuel consumption (g/Kw * h): 200 (recommended to use 0 # diesel)
Maximum output current of diesel generator set (A): 1080
Number of phases/lines of diesel generator set: three-phase four wire
Diesel generator set noise LP7m: 119db Diesel generator set external dimensions (mm): 4500 × 1520 × 2100 (diesel generator set external dimensions are subject to physical objects)
Weight of diesel generator set: 4000Kg (the weight of the diesel generator set is subject to the actual product)
(2) Diesel generator set selection
Diesel engine: Diesel engine brand: Keppel
Diesel engine origin: Shanghai Kaixun Engine Co., Ltd
Maximum power of diesel engine (KW): 610
Diesel engine model: KPV610
Diesel engine cooling start: closed water cooling
Diesel engine starting method: 24V DC electric starting
Number of cylinders in diesel engine: 12
Diesel engine cylinder total displacement L: 26.6
Diesel engine fuel supply method: direct injection
Diesel engine cylinder arrangement: V-shaped
Diesel engine intercooling method: water-cooled
Diesel engine fuel model: Domestic 0 # light diesel
Diesel engine speed regulation method: electronic speed regulation
Diesel engine oil model: WD/40 Diesel engine compression ratio: 16:1
Diesel engine cylinder diameter/stroke: 135/155mm
Diesel engine intake method: turbocharged intercooled
(3) Optional generator brands: Wuxi Stanford, Shanghai Marathon, Lanzhou Electric, Suzhou Defeng (Kejili), Shanghai Stanford, Jiangsu Hengjiu, Guangzhou Ingersoll Rand, Lillesenma, Siemens Generator, Jiangsu Zhongjie, Jiangsu Lingyu, Alma, etc.
Generator brand: Zhongjie Generator
Generator model: ZJ-500
Generator material: Pure copper generator
