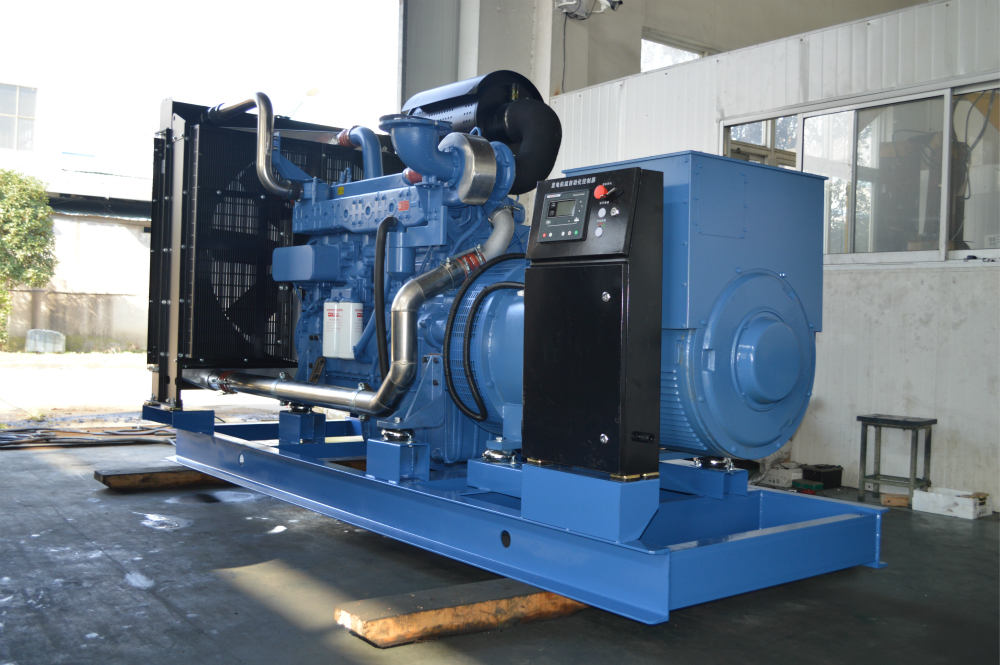

500KW Yuchai diesel generator set，18168300588 WeChat Same Account
| Model | GF-500 | ||
| Manufacturer | Jiangsu Zhongjie Power Equipment Co., Ltd | ||
| Output power | 500KW | ||
| Rated power | 550KW | ||
| Power factor | 0.8 | ||
| Output voltage | 220V/380V | ||
| Output current | 902A | ||
| Unit size（LXWXH）（mm） | 4000*1700*2200 | ||
| Unit weight (KG) | 4400 | ||
| Diesel engine: Yuchai Power | YC6TD840L-D20 | ||
| Prime Power | 575KW | Maximum output power | 616KW |
| Cylinder arrangement | 6 cylinders | Arrangement | Inline |
| Rated speed (PRM) | 1500 | Fuel consumption (g/kw. h) | 210g/kw.h |
| Bore/Stroke(mm) | 145*165 | Rotational speed | 1500 |
| Start mode | Battery start | Maximum exhaust temperature | 560 |
| Total capacity of lubricating oil (L) | 25.2 | Noise db (A) | ≤98 |
| Starting battery voltage | 24V | Cooling method | Radiator cooling |
| Speed Control | Mechanical speed regulation | Cooling air flow rate（m3/min) | 5.5 |
| Air inflow（m3/min) | 5.58 | Displacement（m3/min) | 13.35 |
| 发电机：中捷电机 | ZJ-500 | ||
| Power | 500KW | Excitation method | Brushless self-excited type |
| Insulation level | H | Voltage adjustment range | ≤5%(Stable) |
| Protection grade | IP23 | Steady-state voltage regulation rate | ≤0.5%(Stable) |
| Efficiency | 89% | Voltage control mode | AVR |
| Standard configuration | |||
| ◎Guangxi Yuchai Diesel Engine Co., Ltd. Engine | ◎Jiangsu Zhongjie Generator | ||
| ◎Radiators (fans, water tanks) | ◎Standard channel steel base, integrated with efficient shock absorption device | ||
| ◎DC high-energy starting lead-acid battery | ◎Output circuit breaker, control panel | ||
| ◎Industrial muffler | ◎Operation manual, random materials | ||
| Standard operating condition: ambient temperature≤38 ℃, altitude ≤ 2500m, relative humidity ≤ 60%, the generator set can operate continuously for 12 hours at normal power. | |||
| Non standard operating conditions: when the ambient temperature＞38℃,altitude>2500m, the output power of the generator set needs to be adjusted accordingly; For every 11 ℃ increase in ambient temperature, the output power of the generator set decreases by 2%; For every 300m increase in altitude, the output power of Yuchai 550kw generator set decreases by 4%. | |||
