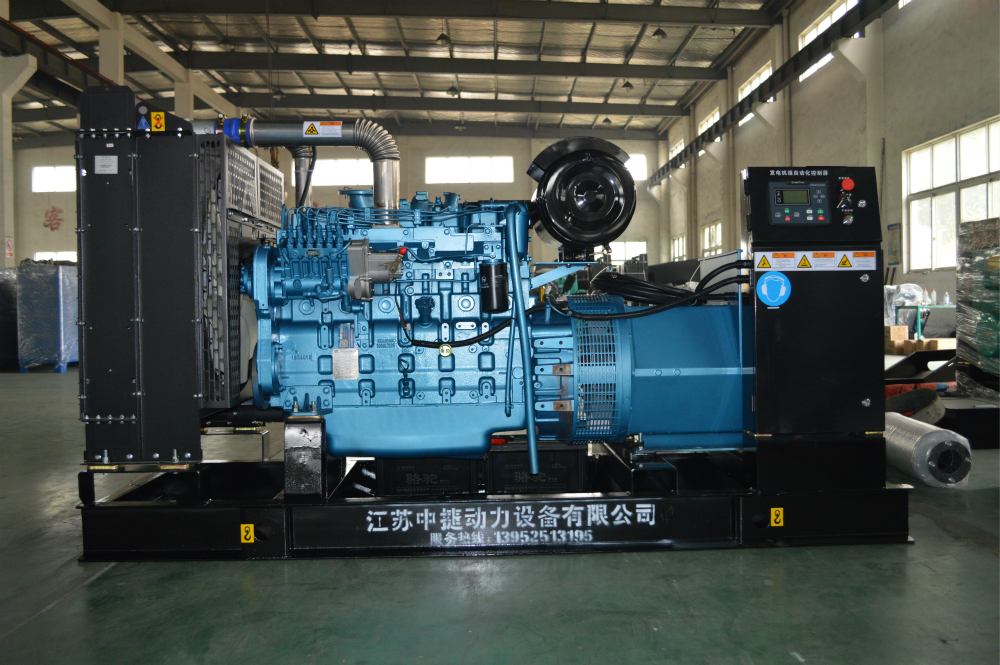

Shanghai Dongfeng Research Institute 180KW diesel generator set, 18168300588 WeChat ID
Technical specifications and parameters of 180KW Shanghai Dongfeng Research Institute SY129TAD23 diesel generator set
Technical parameters of generator set:
Unit model: GF-180 Steady state voltage regulation rate (%): ≤± 1
Output power: 180Kw Voltage fluctuation rate (%): ≤± 0.5
Power factor: COS Φ=0.8 (lag) Transient voltage regulation rate (%):+20~-15
Output voltage: 400V/230V Voltage stabilization time (s): ≤ 1
Output current (common/standby): 324A Steady state frequency adjustment rate (%): ≤± 1
Rated frequency: 50Hz Frequency fluctuation rate (%): ≤± 0.5
Rated speed: 1500rpm Transient frequency adjustment rate (%):+10~-7
Fuel grade: (standard) 0 # light diesel (room temperature) Frequency stability time (S): ≤ 3
Dimensions: 3800 * 1000 * 1750 (L × W × H mm) Fuel consumption (100% load): 220g/kW · h
Unit weight: 2300kg Noise level (LP7m): 100dB (A)
Technical parameters of diesel engine:
Brand/Origin: Shanghai Dongfeng Research Institute Cooling Method: Closed water circulation cooling
Oil engine model: SY129TAD23 Oil supply method: Direct injection
Number of cylinders/daring structure: 6/L-shaped speed regulation method: mechanical speed regulation
Cylinder diameter stroke: 135 × 150 mm Air intake method: naturally aspirated
Compression ratio: 16.5:1 Overload capacity: 110%
Starting method: DC24V electric starting speed: 1500rpm
Generator technical parameters:
Brand/Origin: Shanghai Stanford (currently the best combination of Shanghai Stanford and Shanghai Stanford) Protection Level: IP22
Motor model: GR270J Wiring method: three-phase four wire, Y-shaped connection
Rated power: 180kW Regulating mode: AVR (Automatic Voltage Regulator)
Rated voltage: 400V/230V Output frequency: 50Hz
Insulation level: H-level Output factor: COS Φ=0.8 (lagging)
The standard configuration of the generator set is as follows:
Ø Direct injection internal combustion engine (diesel);
Ø AC synchronous generator (single bearing);
Suitable for environments ranging from 40 ℃ to 50 ℃, including radiator tanks, belt driven cooling fans, and fan safety shields;
Ø Power generation output air switch, standard control screen;
Ø Unit steel shared base (including: unit vibration damping rubber pad);
Dry air filter, fuel filter, lubricating oil filter, starter motor, and equipped with a self charging generator;
Ø Starting battery and battery starting connection cable;
Industrial 9dB muffler and standard components for connection
Random materials: original technical documents of diesel engines and generators, generator set manuals, test reports, etc.
Optional accessories (additional cost):
Ø Engine oil, diesel, water jacket, anti condensation heater Ø Split type daily fuel tank, integrated base fuel tank
Ø Floating battery charger Ø Rainproof unit (cabinet)
Ø Self protection, self starting unit control screen Ø Silent unit (cabinet)
Ø Unit control screen with "three remote" function Ø Mobile trailer type power station (container trailer)
Ø ATS automatic load transfer screen Ø Silent mobile power station (container trailer)
defects liability period:
Within 12 months or a total of 1000 hours of operation after the commissioning and acceptance of the domestic unit; Whichever expires first.
(Vulnerable parts, commonly used parts, human damage, neglect of maintenance, etc. are not covered by the warranty)
If there is a factory adjustment, the original factory warranty regulations shall apply!
