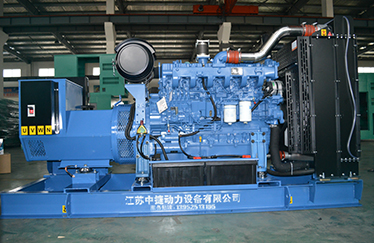

Real shot of Yuchai 180KW diesel generator set，18168300588 Phone and WeChat Same Number
| Yuchai 180KW diesel generator set model technical parameters | |||
| Model of diesel generator set | GF-180 | ||
| Unit power (kw) | 180 | Maximum output current (A) | 324 |
| Frequency （Hz） | 50 | Rotational speed （rpm） | 1500 |
| Output voltage（V） | 400/230 | Unit fuel consumptio n (g/Kw*h) | 215 |
| Number of phases/lines | Three-phase four-wire | Power factor | COSφ=0.8(lagging) |
| External dimensions（mm） | 2950*1100*1700 | Weight （kg） | 2000 |
| Yuchai 180KW diesel generator set diesel engine technical parameters | |||
| Diesel engine model | YC6MK285L-D20 | ||
| Diesel engine brand | Guangxi Yuchai | Diesel engine power（kw） | 211.5 |
| Cooling method | Closed water cooling | Start mode | 24V DC power start |
| No. of cylinders | 6 | Cylinder diameter stroke（mm） | 123*145 |
| Cylinder arrangement method | Lnline | Oil supply method | Direct injection |
| Technical parameters of Yuchai 180KW diesel generator set generator | |||
| Generator model | ZJ-180 | Customers can choose their own brand of motor | |
| Generator material | All copper brushless | Insulation level | H |
| Voltage control mode | AVR | Voltage | ≤4% |
| Protection grade | IP23 | Pressure regulation method | Automatic Voltage Regulation |
| Yuchai 180KW diesel generator configuration instructions | |||
| 1. 180KW Yuchai diesel generator set control panel | |||
| 2. 180KW Yuchai diesel generator random accessories: battery, battery wire, muffler, technical documents, user manual, certificate of conformity | |||
| 3. Water tank, fan, chassis | |||
The 180KW Yuchai generator set will be repaired or replaced free of charge for one year or 1000 working hours (whichever comes first) from the date of delivery due to product quality issues, with lifelong paid service! (Vulnerable parts, commonly used parts, human damage, neglect of maintenance, etc. are not covered by the warranty) Control system: Self starting and self stopping cabinet Self starting and self stopping cabinet: It adopts a fully Chinese intelligent LCD display control module. When the mains power is cut off, after a delay confirmation (adjustable from 0-30 seconds), the unit starts automatically (adjustable from 1-8 times, with a success rate of>99% for the first start). After confirming that the power supply of the generator set is normal, it supplies power to the load. After the mains power is restored to normal, after a delay confirmation (adjustable from 0-30 seconds), it automatically cools down and stops (adjustable from 0-300 seconds). U protection function: low/overspeed, startup failure, high water temperature, output voltage fault (overvoltage, undervoltage, overcurrent). U interface operation: automatic/stop/manual function selection, emergency stop button, buzzer, and mains float charger. U alarm indication: low/overspeed, output voltage fault, startup failure, high water temperature pre alarm. Setting function: Allow users to change their parameters and store them in the internal FLASH memory, which will not be lost in case of system power failure. All parameters of the controller can be set on the front panel. | |||
