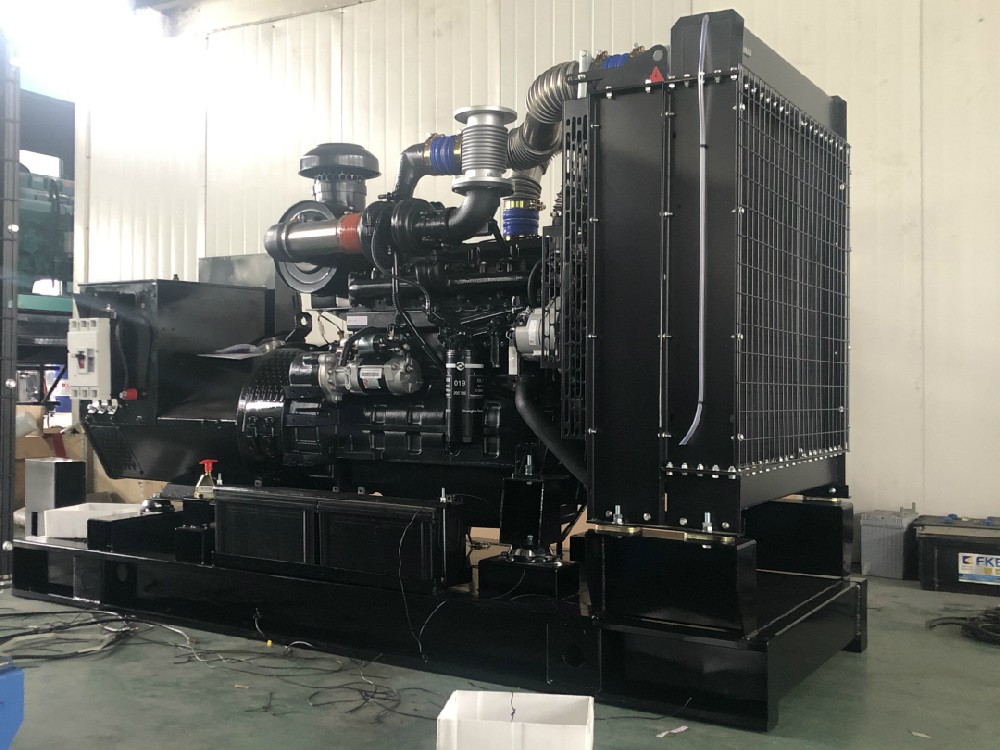

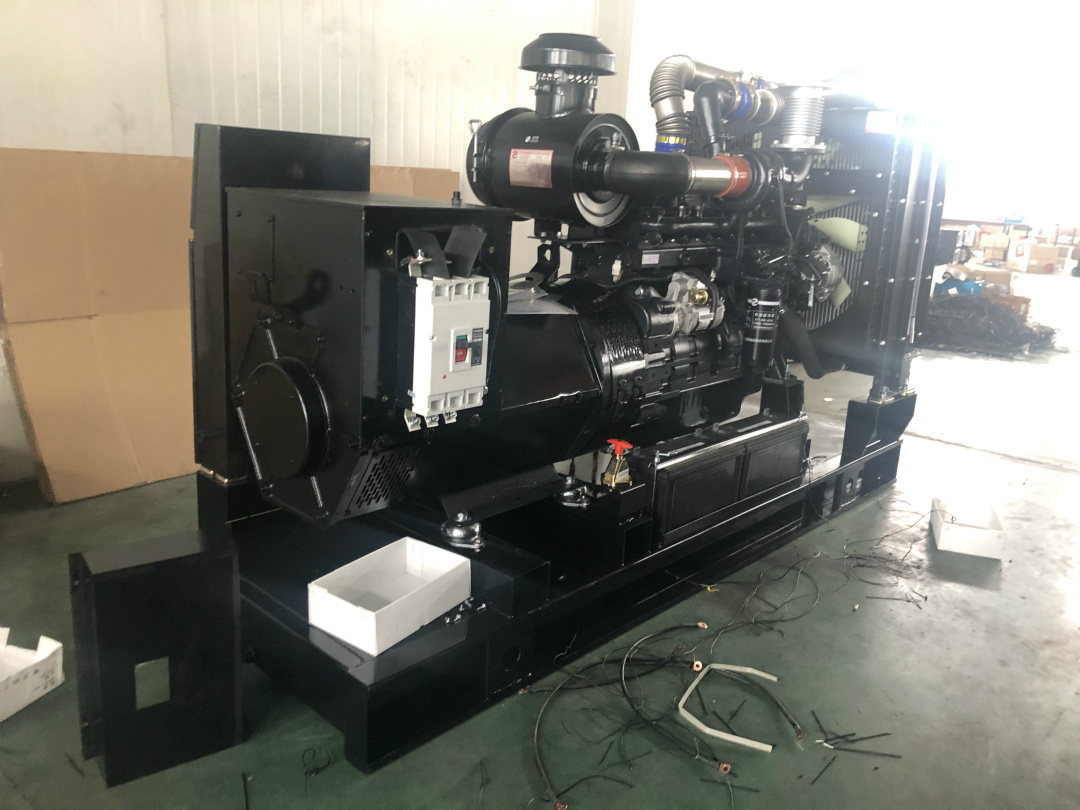

Shangchai Corporation 180KW diesel generator set, diesel engine model: SC9D310D218168300588, with the same phone and WeChat number, including a self starting control cabinet on the side and four protections
1
Technical parameters of Shangchai diesel generator set 180 kW
Diesel generator set model GF-180
Common power 180KW, backup power 200KW
Rated frequency 50HZ, rated current 324A
Steady state voltage regulation rate ≤ ± 1% Steady state frequency regulation rate ≤ 5%
Transient voltage regulation rate ≤ (-15~+20)% Transient frequency regulation rate ≤+10%~-7%
Voltage stabilization time ≤ 1S, frequency recovery time ≤ 5S
Voltage fluctuation rate ≤ 0.5%, frequency fluctuation rate ≤ 0.5%
Speed regulation method: Electronic speed regulation, starting voltage: 24V
Power factor 0.8 interface type SAE11.5 #&SAE2#
Weight 1540kg External dimensions (length * width * height) 2515 * 980 * 1500
Technical parameters of Shangchai diesel generator set 180 kW diesel engine
Diesel engine model SC9D310D2, manufactured by Shangchai Co., Ltd
Rated speed 1500 r/min Fuel specification and grade: National standard 0 # diesel
12h power 206KW1h power 228KW
Lubricating oil specification and grade CD15W/40 and above, oil consumption rate ≤ 0.3 g/kW. h
Fuel consumption rate ≤ 204 g/kw. h, maximum lubricating oil temperature 98 ℃
Cylinder diameter × stroke 114 * 144, number of cylinders 6, inline
Displacement 8.82 Emission Standard TIER II
Turbocharging of intake system, air-cooled noise DB (A) 96
Technical parameters of Shangchai diesel generator set 180 kW generator
Generator model ZJ-180, motor brand optional
Rated power 180KW, rated current 324A
Phase number, three-phase output method, 3-phase, 4-wire, star connection method
Protection level IP22, insulation level, temperature rise level H
Generator efficiency 0.94, excitation mode brushless self magnetization
